Production Introduction
|

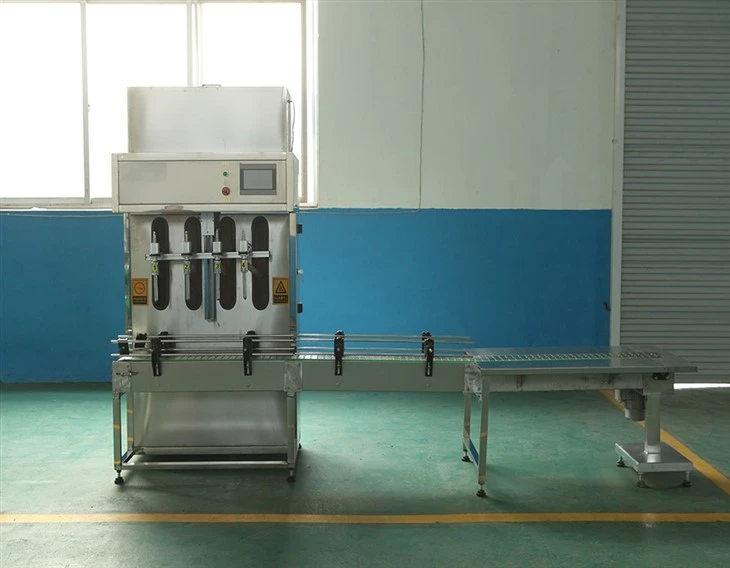

Introduction: 1.The machine adopts integrated electrical design, high quality electrical components, convenient system operation and adjustment, 7-inch touch screen operation, friendly man-machine interface, using novel automatic control technology, in order to achieve more high-precision filling. 2. Filling volume adjustment with actual measurement correction method, digital display control. 3.Easy operation, easy cleaning and maintenance, low maintenance cost. 4.Single cylinder stable diving, effective bottle positioning. |
5.It is widely used in low viscosity liquid filling such as fruit juice antifreeze, glass water seasoning, wine, liquor, olive oil, etc.

The operation interface is clear and simple, and the filling speed and filling volume can be adjusted.
|
Model |
Capacity |
Filling head |
Filling scope |
Power |
Dimension |
Weight |
|
TPP-ZL2A |
200-500pcs/hr |
2 pieces |
100-1000ml |
0.37kw |
700*700*1900mm |
150kg |
|
TPP-ZL4A |
400-900pcs/hr |
4pieces |
500-5000ml |
0.55kw |
1200*750*1900mm |
230kg |
|
TPP-ZL6A |
600-1000pcs/hr |
6 pieces |
5000-10000ml |
0.75kw |
1200*800*1900mm |
245kg |
|
TPP-ZL8A |
700-1200pcs/hr |
8pieces |
0.75KW |
1200*850*1900mm |
260KG |

Conveyor belts can be added as needed to achieve automatic feeding of bottles and transportation. The length of the conveyor belt can be customized, standard 3 meters.
