Introduction
1. This manual honey bottling machine adopts piston measuring mode and compressed air as the power to work.
2. The honey bottling machine dopts 304 stainless steel, corrosion resisting, compact structure with easy operation.
3. Filling capacity of manual honey bottling machine can be adjusted easily.
4. It can work automatically or controlled by a operation pedal.
5. The pneumatic honey bottling machine suits for filling both liquid and paste material such as water, juice, oil, sauce, toothpaste, cosmetic paste, hand cream, honey, peanut butter etc. The sauce filler machine is widely used in the chemical industry, food, cosmetic, medicine, etc.
6. This pneumatic honey bottling machine single head, double heads and full pneumatic model, if need, pls contact in advance.
Inform
In order to provide the best suitable machine for you , When place an order ,
please enclose the answers of following question and your email ID carefully.
1)please tell us your filling range(dose)
Such as 50ml, 100ml,300ml,500ml,1000ml,5000ml
2)please describe your product in detail. Is it liquid or paste ? What is the viscosity?
Does it have a good fluidity?
You can also make a example ,like water ,shower gel,shampoo ,toothpaste,detergent ,cosmetic and so on.
3) provid all of inner diameter size of your vessel mouth (bottleneck)
If have more query , please information to me , I will revert to you ASAP
4) it is better , if you attached your email ID, so I can provide more information with email
Principle
Piston Fillers measure and dispense free flowing products - such as thin and dense liquids and paste into a container. Each machine is equipped with one or more volumetric pistons. Each filling cycle consists of an intake stroke, where the product is withdrawn from the hopper or vessel by tube and taken into the product cylinder.
The down stroke commences as soon as the product cylinder has reached its predetermined fill level.
The piston pushes the product out of the cylinder and into the container.
Parameter
Model | TPP-DG100 | TPP-DG200 | TPP-DG500 | TPP-DG1000 | TPP-DG2600 |
Filling scope | 10-100ml | 20-200ml | 50-500ml | 100-1000ml | 260-2600ml |
Voltage | AC 220/110V 50/60HZ | ||||
Filling accuracy | ±0.5%-- ±1% | ||||
Power | 20W | 20W | 20W | 20W | 20W |
Air pressure | 0.4-0.6 MPa | ||||
Dimension | 1020*340*340mm | 1020*400*400mm | |||
Weight | 24kg | 24kg | 26kg | 30kg | 35kg |
Filling speed | 40-50 | 40-50 | 40-50 | 30-40 | 20-30 |

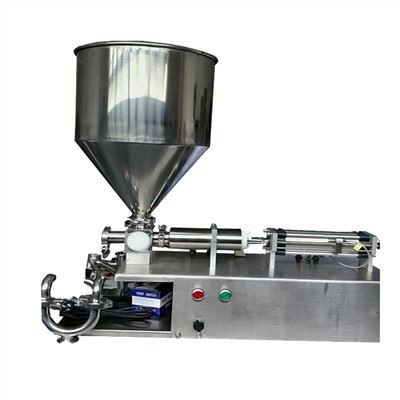

Photos
FAQ
1.Q:Are you machinery factory or trading company?
A:We are machinery Manufacturer,and also have one trading company
2.Q:Where is your factory located?
A:We are located Wenzhou City,Zhejiang Province,China
From SHANGHAI by air is 40mins,by train is 4hours.
From GUANGZHOU by air is 2hours.
From Yiwu by train only 1 hour.
3.Q:How many years warranty?Can you teach us?
A:In usually,we given customer one year warranty.We also have oversea technician service,to help you install the machine.
4.Q:What`s the payment method?
A:We can accepted T/T,L/C,Western Union,Moneygram ETC.
5.Q:Can we order on herowu.en.made-in-china.com?
A:Yes!Of course!We also we give you more discount if you order on herowu.en.made-in-china.com.
6, Q:Can you offer us the necessary paper to do the customs clearance?
A:Yes, of course. We will send you the commercial invoice, sales contract, packing list, bill of lading(FOB or CFR, CIF terms), insurance policy (if CIF terms), also CO if you need.
