Production Description

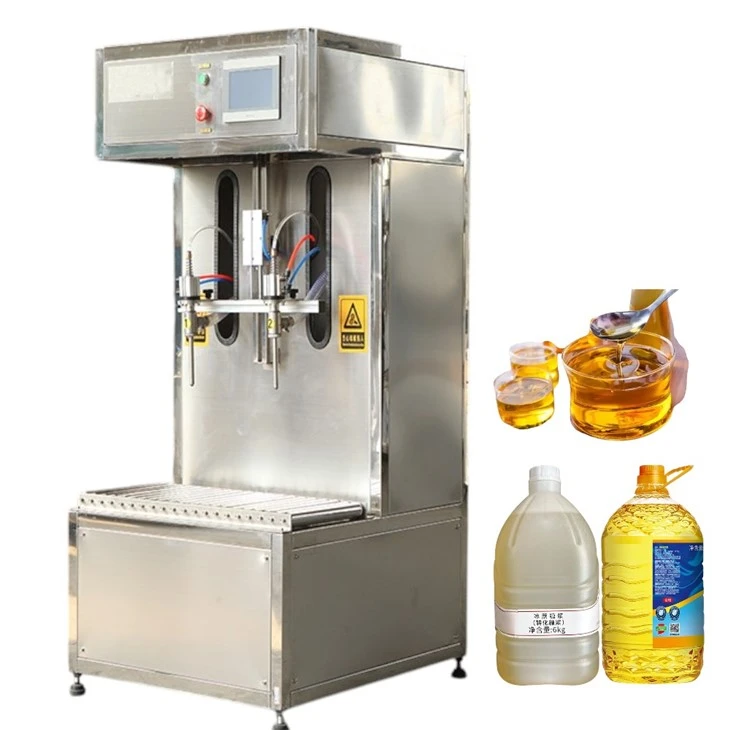

1. The Weighing Bottle Filling Machine is for filling various non-gas fluid and semi-fluid by intelligent weighing system. Weighing Bottle Filling Machine is with wide range of application, such as edible oil, lubricating oil, antifreeze, urea liquid, paint, waterproof paint, liquid fertilizer, syrup and other viscous non-viscous liquid.
2. Weighing Bottle Filling Machine is an ideal model for various food industries, daily chemical industry and other industries. The machine adopts the automatic weighing method, which makes the measurement more accurate and the operation more convenient.
Production parameter
|
Model |
TPP-BZC2 |
|
Filling head |
2 heads |
|
Filling scope |
1-5L or 5L-25L |
|
Capacity |
150-300pcs/hr(Depending on the viscosity) |
|
Power |
2.2kw, 380V50HZ, 3phases |
|
Air source |
0.6MPa(the air compressor needs to be prepared by user) |
|
Filling accuracy |
≤±0.5﹪ |
|
Dimension |
850*900*1600mm(depends on the size of the barrel) |
|
weight |
220kg |
Production Feature
1.The Weighing Bottle Filling Machine is controlled by programmable logic controller (PLC), with digital transmission module, touch screen input operation, which is characterized by convenient operation and high production efficiency.
2. The Weighing Bottle Filling Machine appearance humanized design, beautiful and generous, the body is all made of stainless steel.
3. The Weighing Bottle Filling Machine has a high degree of automation, measurement and adjustment are realized in the touch screen; intelligent operation of the machine is more reliable, convenient, more friendly human-machine interface.
4. All parts of the machine are made of 304 stainless steel, which is the ideal packaging equipment in the chemical industry.

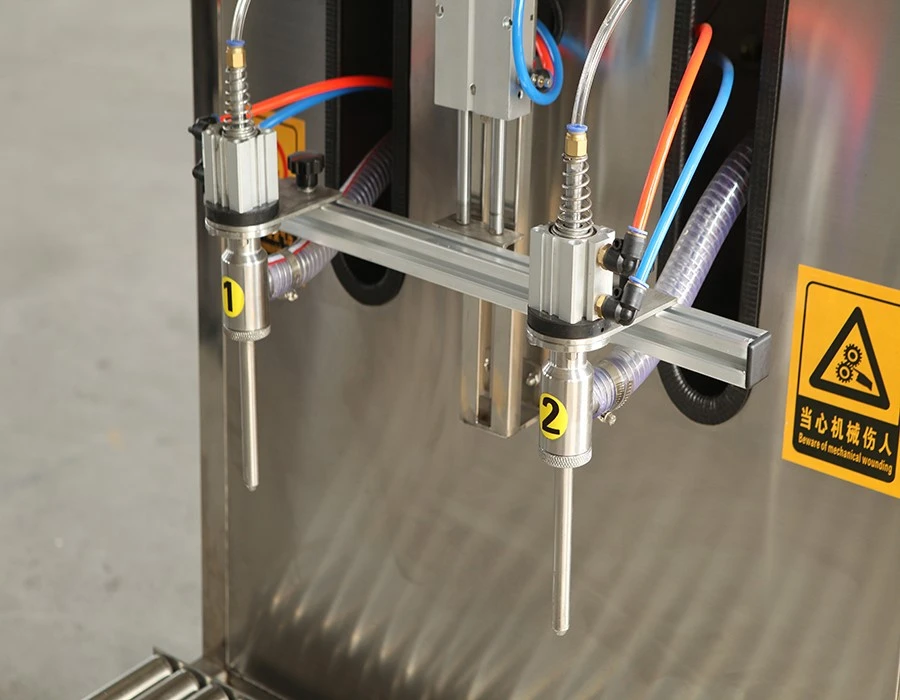

5. The Weighing Bottle Filling Machine USES the diving filling, anti-drip filling valve, can effectively prevent the filling liquid because of drip leakage caused by pollution.
6. The Weighing Bottle Filling Machine is equipped with built-in power pump, no need to be equipped with high level tank, which simplifies the installation process and saves customers' cost at the same time.
