Automatic Waffle Roll Injection Filling Machine
video

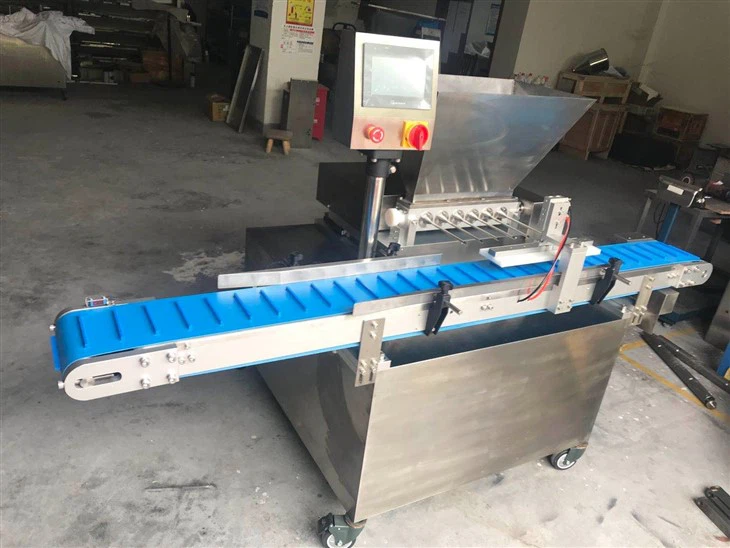

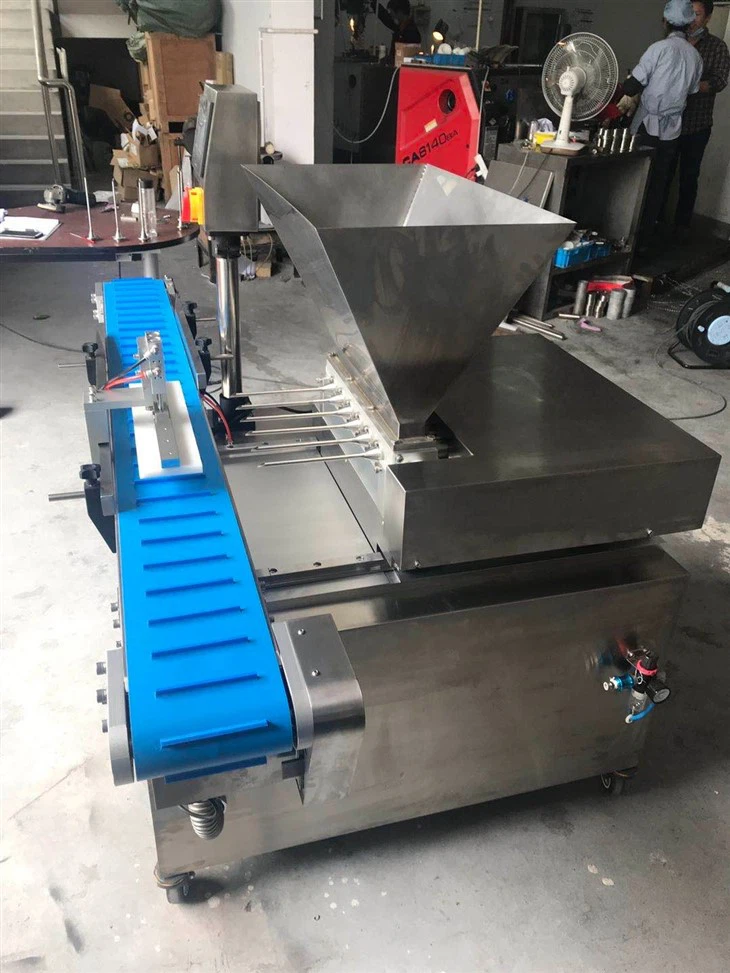

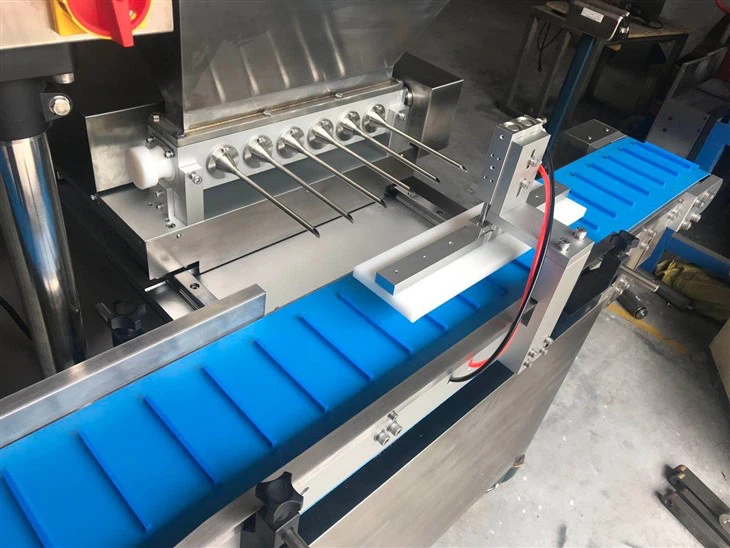

Automatic Waffle Roll Injection Filling Machine

Automatic Waffle Roll Injection Filling Machine

Core filling machine can inject various fluid raw materials like chocolate, cream, jams.
Send Inquiry
Chat Now

Product Introduction

Production Introduction

Bread injection filling machine can be used for filling cream stuffing into round bread, long bread, donuts, egg rolls, cream puffs, etc.

It can filling various flavors semi-fluid fillings, like cream, jams, bean paste, chocolate sauce, etc.

Suitable for filling egg roll, waffle roll, waffles.

bread filling machine

bread injection machine (2)



Model

TPP-SF6000

Max. filling frequency

15times/minute

Max. Capacity

4000pcs/h

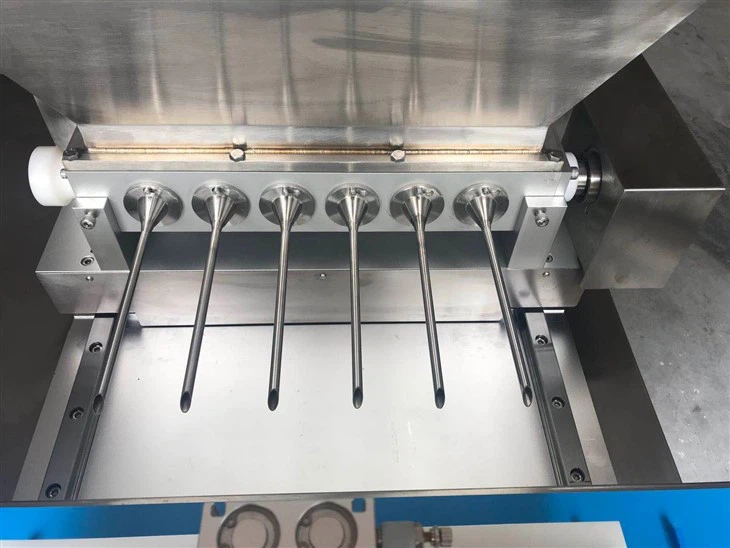

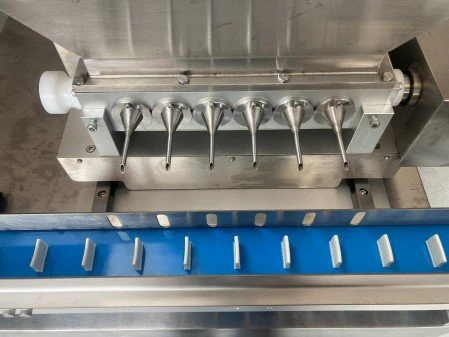

Filling head needle

2-6 pieces (selectable)

Filling head needle inner diameter

4mm, 6mm, 8mm, 10mm (thick 1mm)

Filling scope

10-150ml (adjustable)

Power

1.5kw, 220v, 50Hz

Suitable bread max length

 200mm

Suitable bread max width

80mm

Filling hopper volume

40L

Dimension

3000*1200*1450mm

Weight

450kg



According to the users requirement, can add automatic heat preservation and heating device in the hopper. For fillings thick materials can add a pressing device in hopper.



As also can custom bread injection filling machine hopper into two color hopper, and two different types and colors of fillings can be injected at the same time.
