Bread Jam Filling Cream Injecting Machine
video
Bread Jam Filling Cream Injecting Machine

Bread Jam Filling Cream Injecting Machine

jam filling cream injecting machine This multifunctional bread jam filling cream injecting machine is a kind of multi-purpose food filling machine newly developed by our company. The bread jam filling cream injecting machine equipment can carry out complex actions such as long strip...
Send Inquiry
Chat Now

Product Introduction

bread jam filling machine

This multifunctional bread cream filling machine is a kind of multi-purpose food filling machine newly developed by our company. The jam filling machine equipment can carry out complex actions such as long strip filling, dot filling, flat coating, etc.; this machine can produce various snack foods such as filling bread, filling cake, filling egg rolls, etc.


The cream injecting machine does not need to cut the bread or cake, and our product does not destroy the original appearance of the food; the bread filling injecting machine stainless steel filling needle tube is used to insert into the bread or cake, and through computer program calculation and control, fillings of different lengths and different amounts can be injected; this machine filling evenly And the filling will not leak out after being squeezed.


The bread cream injecting machine movement accuracy of the filling needle tube of the multifunctional filling machine can reach 0.1mm (millimeter), and the filling accuracy can reach 1ml (ml).


The  jam filling injecting machine equipment can inject various fluid and semi-fluid fillings, including butter, various flavors of jam, bean paste, chocolate sauce, etc.; according to the actual situation, an automatic heat preservation and heating device can be added in the hopper, for fillings with light specific gravity The material is increased by a pressing device; the hopper can also be made into a two-color hopper, and two different types and different colors of fillings can be injected at the same time.


Parameter for jam filler machine

ModelTPP-SF6000
Max. filling frequency15times/minute
Max. Capacity4000pcs/h
Filling head needle2-6 pieces (selectable)
Filling head needle inner diameter

4mm, 6mm, 8mm, 10mm (thick 1mm)

Filling scope

10-150ml (adjustable)

Suitable bread max length

200mm

Suitable bread max width

80mm

Filling hopper volume

40L

Power

1.5kw, 220V/380V

Dimension

3000*1200*1450mm

Weight

450kg

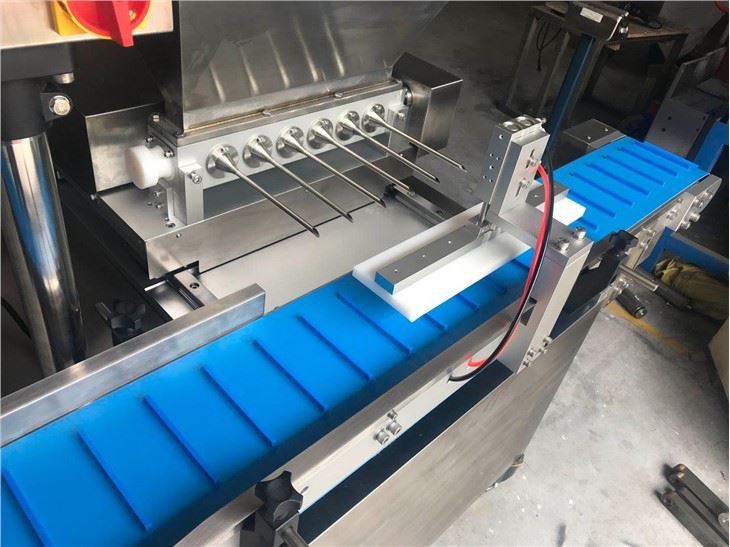

Photos for cream filler machines

cream injecting machine

bread cream injecting machine
