Product description
*Extrusion technology can decompose protein, easy to digest and absorb, improve the nutrition absorption rate of pet food, and eliminate flatulence. *Extrusion technology can gelatinize starch and produce a unique coke flavor, which can increase pet appetite. Therefore, extrusion technology produces Pet food is a premium pet food.
Process composition:
1. Crushing equipment: crush the raw materials to be crushed into powder according to actual needs.
2. Mixer: Mix the raw materials required for dog food production according to the formula. Different types of mixers can be selected according to the output of the production line.
|
Model |
Main motor power (KW) |
Output (KG/H) |
Machine size (MM) |
Voltage (V) |
Weight (KG) |
|
TPP-JB15 |
2.2 |
15 |
550X320X800 |
220/380 |
50 |
|
TPP-JB25 |
4 |
25 |
1050X530X1050 |
380 |
100 |
|
TPP-JB50 |
7.5 |
50 |
1150X600X950 |
380 |
150 |
|
TPP-JB100 |
15 |
100 |
1220X800X1100 |
380 |
200 |
3. Feeding machine: spiral or bucket conveying materials to ensure convenient and quick feeding and reduce secondary pollution from manual contact. Spiral or bucket conveying is selected according to the output.

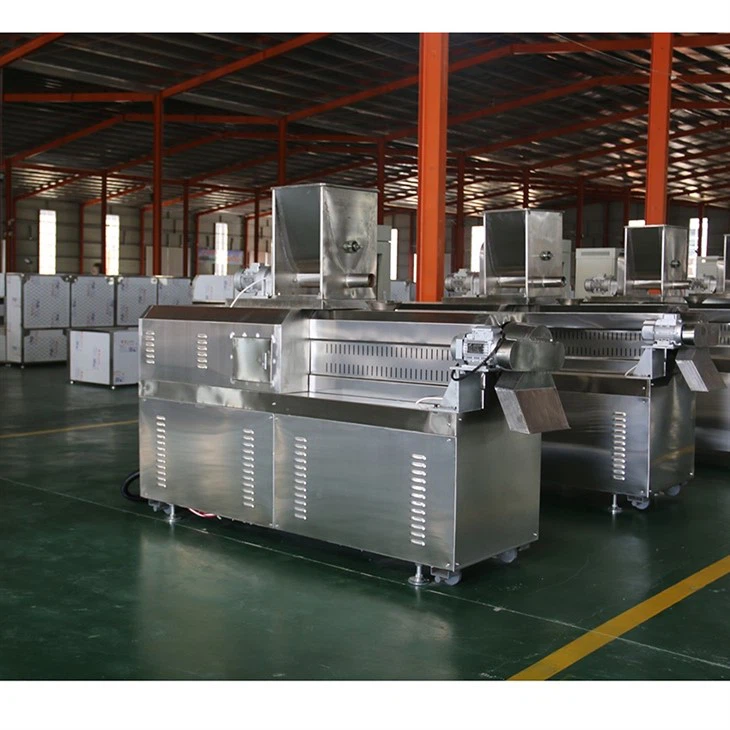

4. Twin-screw extruder: Our company has different types of extruder to choose from according to the output of the production line. The output ranges from 100kg/h to 5000kg/h. The specific product shape can be changed by changing the mold.
| Model | Main motor power (KW) |
Capacity(KG/H) |
Feeding power(KW) |
Cutter power(KW) |
dimension(mm) |
Voltage |
weight |
|
TPP-DL40 |
5.5 |
50-60 |
0.4 |
0.4 |
1500X1100X1100 |
220/380 |
310 |
|
TPP-DL50 |
11 |
80-100 |
0.4 |
0.4 |
1500X1100X1100 |
380 |
320 |
|
TPP-DL60 |
15 |
120-150 |
0.4 |
0.4 |
1600X1300X1200 |
380 |
450 |
|
TPP-DL70 |
18.5 |
180-200 |
0.4 |
0.4 |
1600X1300X1200 |
380 |
500 |
|
TPP-DL80 |
22 |
260-300 |
0.4 |
0.4 |
1950X1350X1400 |
380 |
700 |
|
TPP-DL90 |
30 |
350-400 |
1.5 |
0.75 |
2100X1500X1350 |
380 |
900 |
|
TPP-DL120 |
55 |
600-800 |
2.5 |
1.1 |
2400X1950X1600 |
380 |
1700 |
|
TPP-DL130 |
75 |
800-1000 |
2.5 |
1.5 |
2800X2000X1600 |
380 |
2000 |
|
TPP-DL160 |
90 |
1200-1500 |
3 |
2.5 |
3200X2200X1900 |
380 |
2200 |
5. Air conveyor: convey the dog food to the dryer. The height of the air conveyor is determined according to the oven, and a hoist can also be used.
6.Multi-layer belt dryer: The dryer is divided into electric oven, oil (steam) oven, steam oven, etc., which can be selected according to the output and fuel convenience. The temperature is adjusted between 0-200 degrees through the control cabinet. The inside is a stainless steel double-layer mesh belt. The drying time is adjusted by frequency conversion speed. There are three-layer, five-layer, and seven-layer stainless steel dryers of different models.
|
Model |
Capacity (KG) |
Diameter of barrel (MM) |
Electric heating power (KW) |
Blower power (KW) |
Voltage (V) |
Dimensions (MM) |
Weight (KG) |
|
TPP-HG50 |
50 |
480 |
6 |
0.18 |
380 |
850x470x950 |
50 |
|
TPP-HG100 |
100 |
550 |
9 |
0.3 |
380 |
920x570x1000 |
80 |
|
TPP-HG150 |
150 |
640 |
9 |
0.4 |
380 |
950x600x1150 |
95 |
7.Cooling conveyor: cool the material and transport it to the next process.
8.Silo: store materials and wait for later spraying.
9.Seasoning line: There are manual octagonal cylinders, shotcreting and cylinders, lifting single drum, double drum seasoning lines, which are configured according to the output and the nature of the product.
Product pictures
