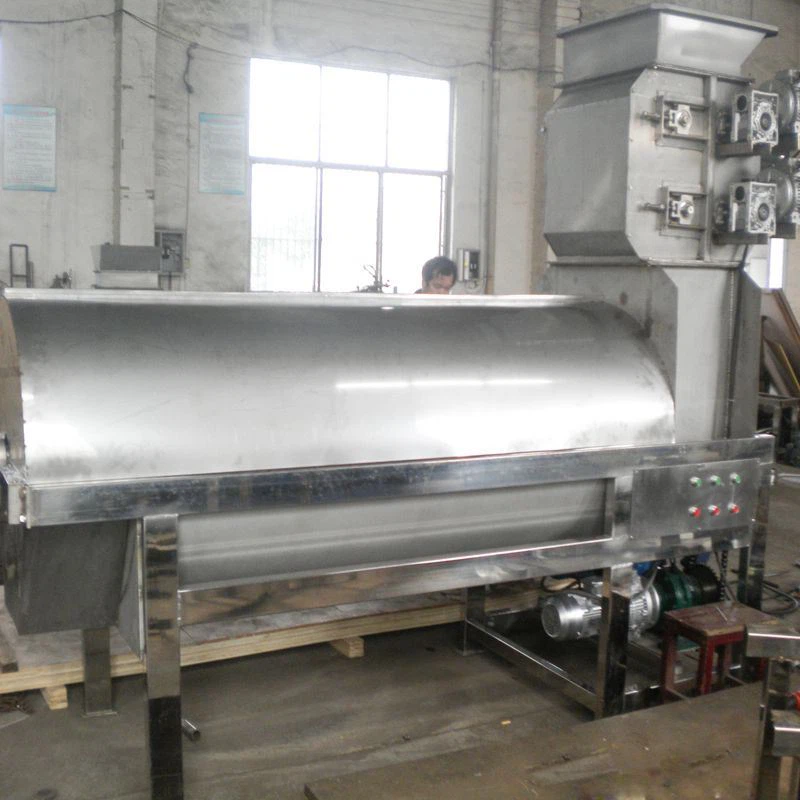

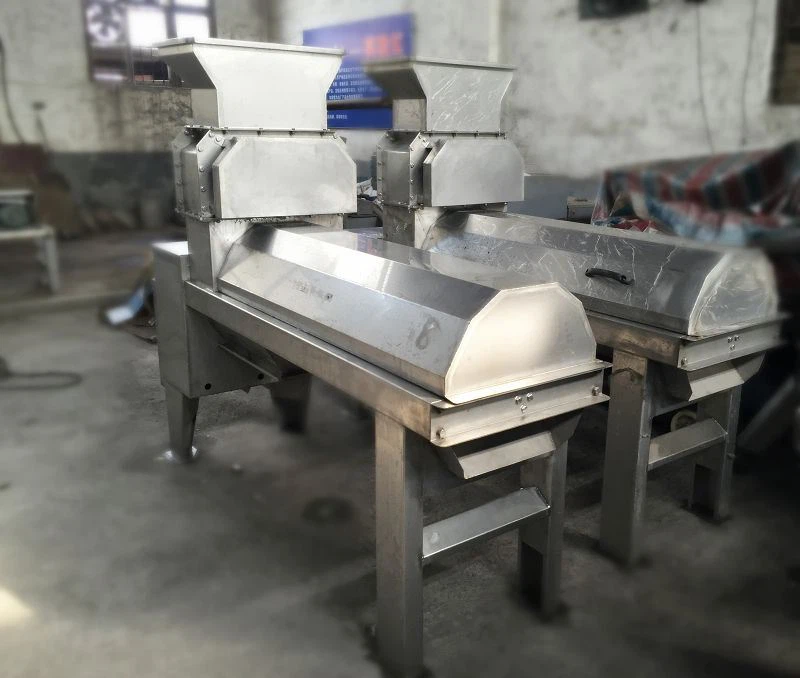

Automatic Pomegranate Peeling Machine

Pomegranate peeling machine, also known as pomegranate peeling machine, is actually developed on the basis of grape de-stemming crusher. , to break the pomegranate skin and fall into the de-stemming device, that is, the peeling device, use the mace to open the skin seeds, the pomegranate skin is transported to the outside of the machine through the mace, and the pomegranate seeds fall to the screw pump below through the screen hole. or other conveying devices.

The automatic pomegranate peeling and separating machine is a kind of pretreatment machine for pomegranate peeling and separation of pomegranate seeds.

The pomegranate peeling machine includes a feeding hopper, an upper breaking device, a lower breaking device, a rotary screen, a stirring shaft, a screw pump, a frame, etc.

The pomegranate peeling machine is made of stainless steel except for the driving parts. The mixer shaft is a variable frequency motor.

The peeling and separation process can ensure that the integrity rate of pomegranate is as high as 90%. It is an essential equipment for processing pomegranate into juice, beverage and other related foods.

Working Principle of Pomegranate Peeling Machine

The pomegranate feed enters the crushing plant for crushing.

The gap between the two rollers is 20mm, and then goes to the next crushing plant to crush the pomegranate again,

The gap between the two rollers is 10 mm, and the pomegranates extruded from the two layers basically have the peel and seed separation and fall off.

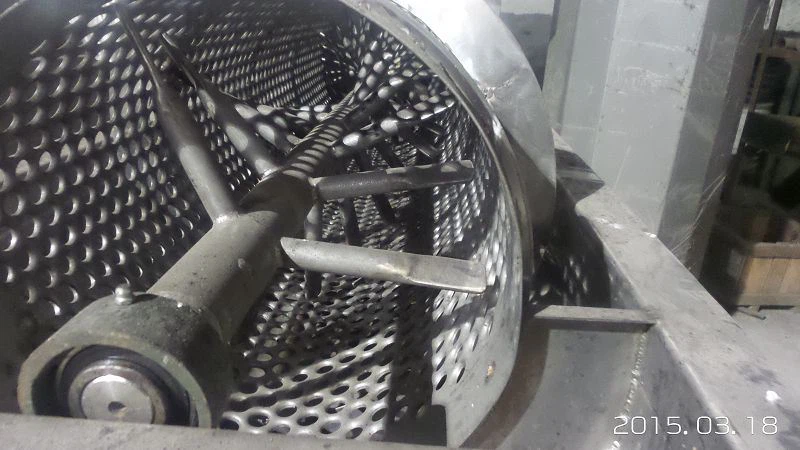

Enter the separation device, stir in the stirring shaft, the pomegranate seeds fall from the sieve, the pomegranate peel is discharged from the tail, the elastic structure of the crushing roller, the gap is adjustable.

Features

1. The upper and lower crushing rollers of the automatic pomegranate peeling machine can adjust the gap between the crushing rollers, and the structure is flexible;

2. The upper and lower pomegranate peeler crushing device replaces the upper and lower cutting device, which can be used to separate the peel and pulp of passion fruit and lemon

3. The stirring shaft and drum speed are adjustable;

Parameter

Photos
