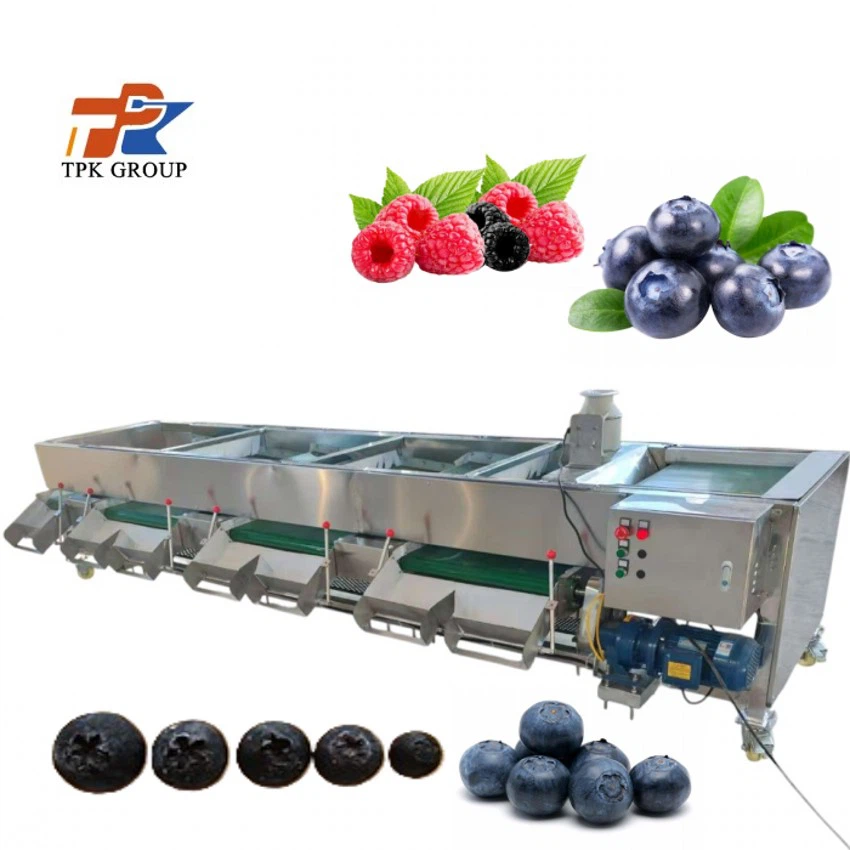

Machine introduction
The Wholesale Berry Grading Machine is suitable for grading blueberry and berry.
Features:
1.The Wholesale Berry Grading Machine has High machine output.
2.PVC perforated belt sorting, without damaging the skin of blueberries, raspberries, etc.
3.The Grading range for each level can be customized as needed.
Machine Structure
Machine Structure of the Wholesale Berry Grading Machine
Note: The machine in the picture is a level four machine.
Parameter of The Wholesale Berry Grading Machine
Pls note: The wider the sorting belt, the greater the machine's output.
Width of size hole belt:0.7m
|
model |
grades |
capacity |
power |
Dimension |
weight |
|
TPP-LM3B |
3 |
500-600kg/hr |
1.85kw 220V/380V |
3100*1200*820mm |
400kg |
|
TPP-LM4B |
4 |
500-600kg/hr |
1.85kw 220V/380V |
4100*1200*820mm |
450KG |
|
TPP-LM5B |
5 |
500-600kg/hr |
1.85kw 220V/380V |
5100*1200*820mm |
500kg |
Width Of Size Hole Belt:0.9m
|
model |
grades |
capacity |
power |
Dimension |
weight |
|
TPP-LM3 |
3 |
800-1000kg/hr |
2.2kw 220V/380V |
3100*1500*820mm |
600kg |
|
TPP-LM4 |
4 |
800-1000kg/hr |
2.2kw 220V/380V |
4100*1500*820mm |
680KG |
|
TPP-LM5 |
5 |
800-1000kg/hr |
2.2kw 220V/380V |
5100*1500*820mm |
760kg |

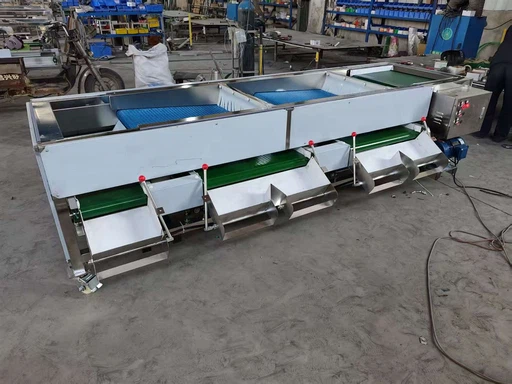

Machine Pictures

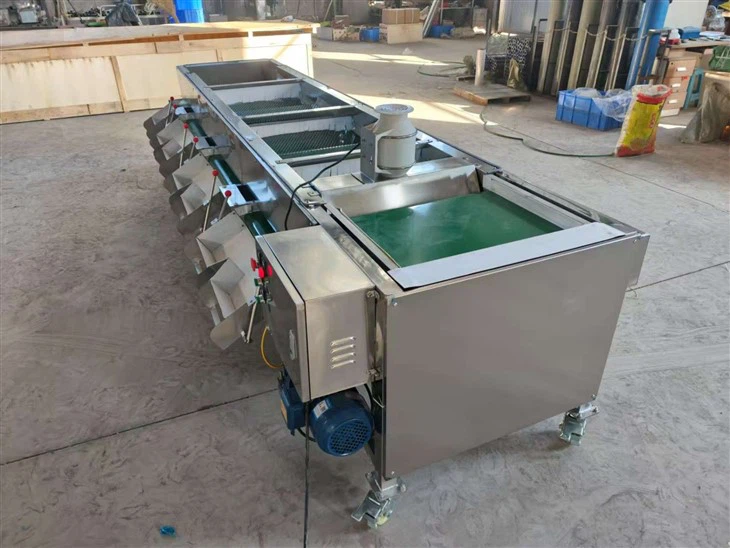

3-grade Wholesale Berry Grading Machine

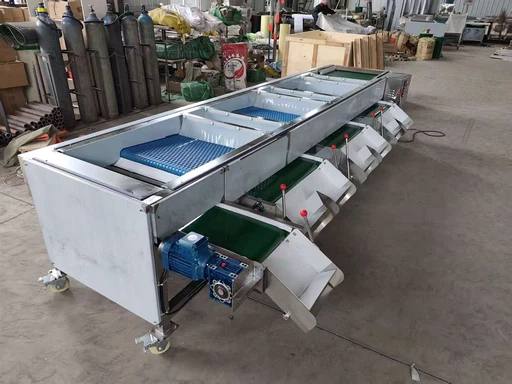

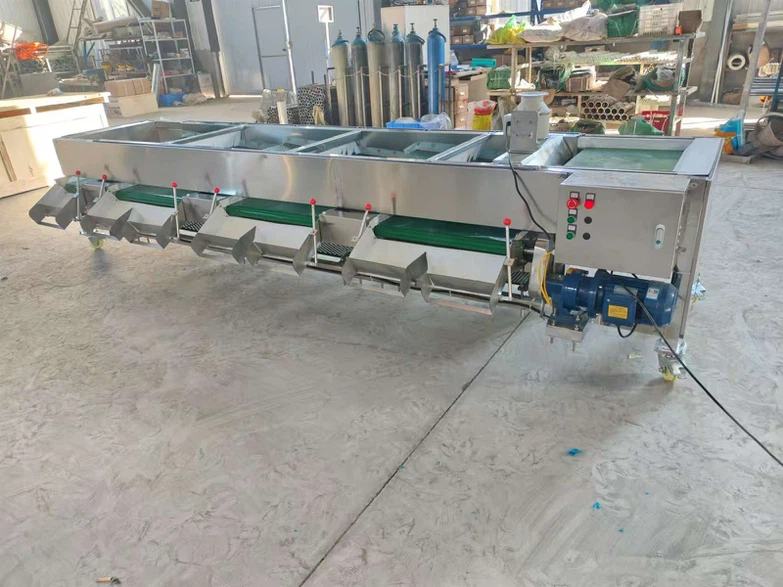

4-grade Wholesale Berry Grading Machine

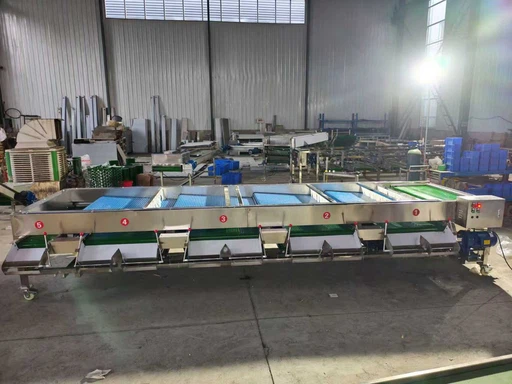

5-grade Wholesale Berry Grading Machin
Working Principle:
1.The berries are fed into the Wholesale Berry Grading machine and transported through grading belts.
2.The berries of different sizes are separated by sorting holes on the sorting belt, and these blueberries will exit from different outlets..
Application Scenarios:
1.Fresh fruit packing lines
2. Blueberry & Berry farms
3.Frozen fruit processing plants
4. Supermarket supply chains
Application
FAQ
Q1: Can the sorting range for each grade on the Wholesale Berry Grading Machine be adjusted?
A: No, it cannot be adjusted. The sorting holes on the sorting belt are laser-engraved and fixed.
Q2: Can the Wholesale Berry Grading Machine's voltage be customized?
A: We can customize a suitable single-phase or three-phase power supply based on your factory's voltage.
Q3: Are there any easily worn parts on the Wholesale Berry Grading Machine?
A: There are no easily worn parts on the machine; the machine has a long service life.
