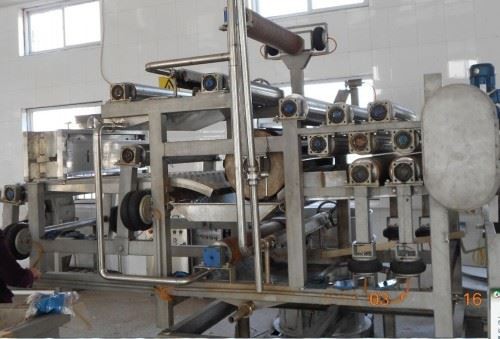

Belt Fruit jucing Machine
The belt juice press is a fruit juice pressing machine that our factory has independently developed. The original juice and the filter screen cleaning liquid can be collected separately. It has the advantages of high pressing efficiency, large production capacity, good cleaning effect, flexible operation, simple maintenance, and can be widely used in the food industry, such as vegetables, apples, pears, and bayberry.
| model | TPP-DYJ-3 | TPP-DYJ-5 | TPP-DYJ-10 |
| capacity | 1-3T/H | 3-5t/h | 10-12t/h |
| power | 1.5kw | 3kw | 4kw |
| dimension | 3.1*1.475*1.82m | 3.94*2.085*2.43m | 5*2.78*2.56m |
| height of inlet | 1160mm | 1840mm | 2045mm |
The machine is completely assembled with stainless steel and food-safe plastic. The frame structure is compact and takes up a small area. It is sturdy, durable, easy to maintain, and all the rollers are staggered in height, with the frequently operated parts in a low position, and the overall structure is neat and beautiful.
Moreover, the machine is easy to use, and the operation is straightforward. The user only needs to place the fruit into the feeding hopper, and the belt juice press will automatically process the fruit to extract the juice. The machine features a sturdy and high-performance motor, which makes the entire process fast and efficient.
Application:
This belt fruit juicing machine is widely used in food, pharmaceutical and other fields, such as, vegetables, Chinese medicine, apple, pear, and arbutus and so on.
Structure introduction:
The belt type juice press is composed of stainless steel frame, pressing section, driving device, filter belt tensioning device, filter belt rectifying system, collecting disc and discharge pipe, electrical control system, etc.All use 304 stainless steel and food plastic materials, to ensure a long and stable operation of the equipment.
The belt type juice press has perfect automatic control and protection function, once the filter belt runs seriously, the washing water pressure is too low, the compressed air pressure is too low, the external signal command and so on all stop and alarm.
This belt juice press machine is an efficient and reliable way to obtain high-quality juice. It is designed to give superior performance, making it an excellent choice for commercial use. It simplifies the juice extraction process while enhancing its effectiveness.
In conclusion, the belt juice press is a must-have tool for anyone who wants to extract high-quality juice from various fruits and vegetables. It is efficient, easy to use, and delivers excellent results. The machine is highly recommended for commercial use, such as in restaurants, hotels, and juice bars. It is an investment that will save you time and money while ensuring that you consistently produce high-quality juice.
