Products Description
Introduction:
This hydraulic press machine adopts hydraulic press method to press fruit vegetable so that it can remove and separate the liquid or juice from the fruit vegetables.
Application:
This machine is suitable for press kinds of bean product, pickled vegetables, Chinese herbal medicines, fruit and vegetables.
Function:
It is with function of press dewatering, juice extraction and salt extraction, etc. It also can be used for solid-liquid separation.
Feature:
The press plate and material tank are made of stainless steel 304, which is very durable.
Product parameter
|
Model |
TPP-YY50 |
TPP-YY100 |
|
Power |
3kw |
3kw |
|
voltage |
380V, 50HZ, 3phases |
380V, 50HZ, 3phases |
|
Pressure |
30 ton |
30 ton |
|
Container |
50L |
100L |
|
Batch capacity |
35kg/time |
70kg/time |
|
Tank inner size |
400*500mm(diameter*height) |
500*500mm(diameter*height) |
|
Press time |
15-20minutes per time |
15-20minutes per time |
|
Dimension |
1300*672*1760mm |
1300*736*1760mm |
|
Weight |
300kg |
350kg |
|
Discharge way of fruit residues |
By worker |
By worker |
|
Model |
TPP-YY400 |
|
Power |
4kw |
|
voltage |
380V, 50HZ, 3phases |
|
Pressure |
50 ton |
|
Container |
400L |
|
Batch capacity |
300kg/time |
|
Tank inner size |
800*800mm(diameter*height) |
|
Press time |
20minutes per time |
|
Dimension |
1750*940*2370mm |
|
Weight |
700kg |
|
Discharge way of fruit residues |
electric hoist discharging |

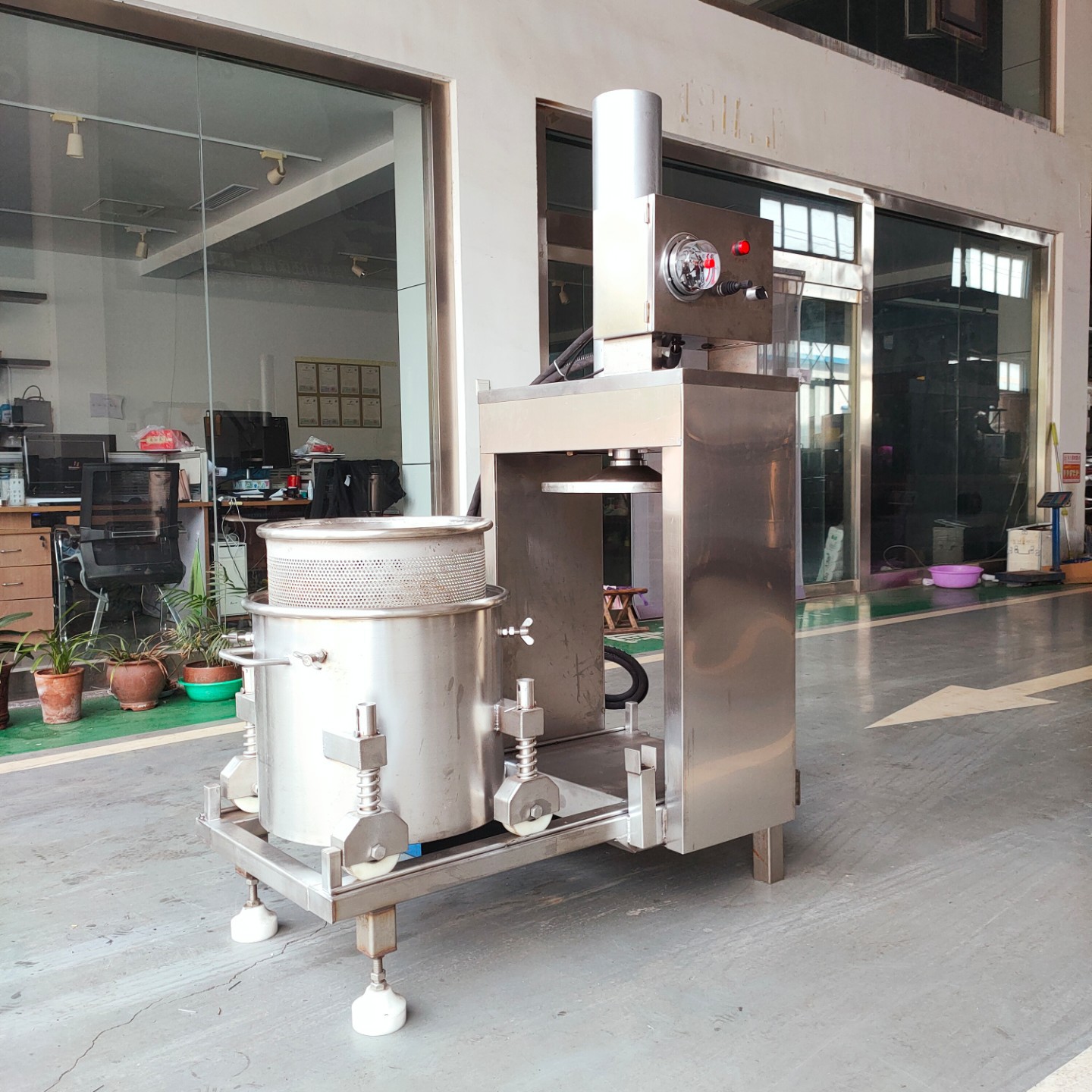

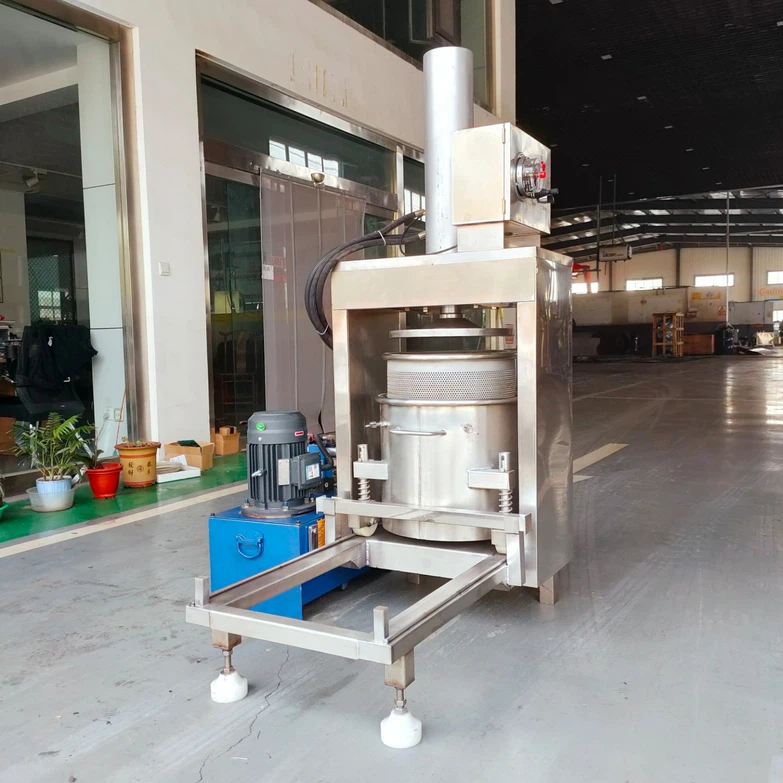

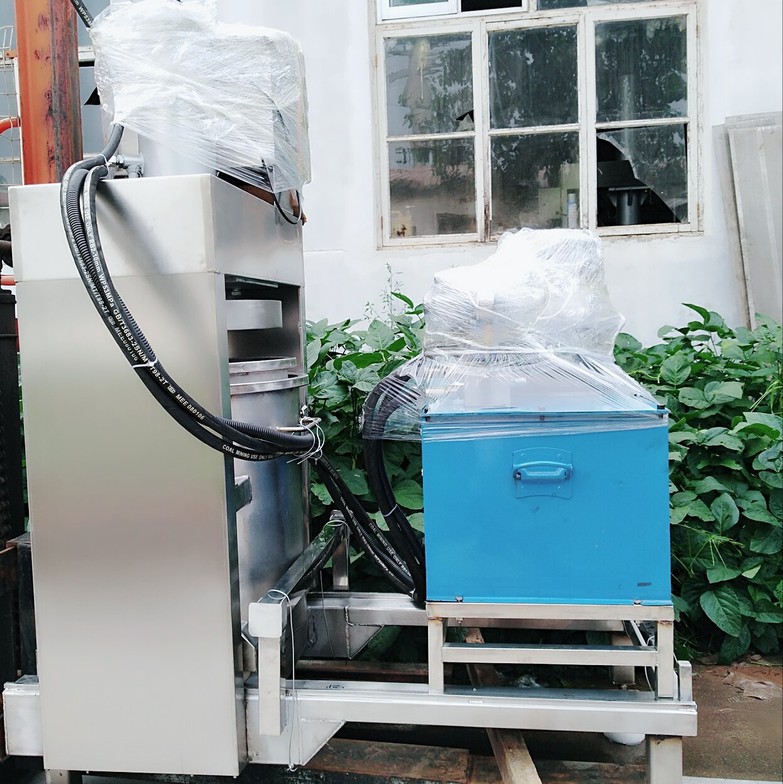

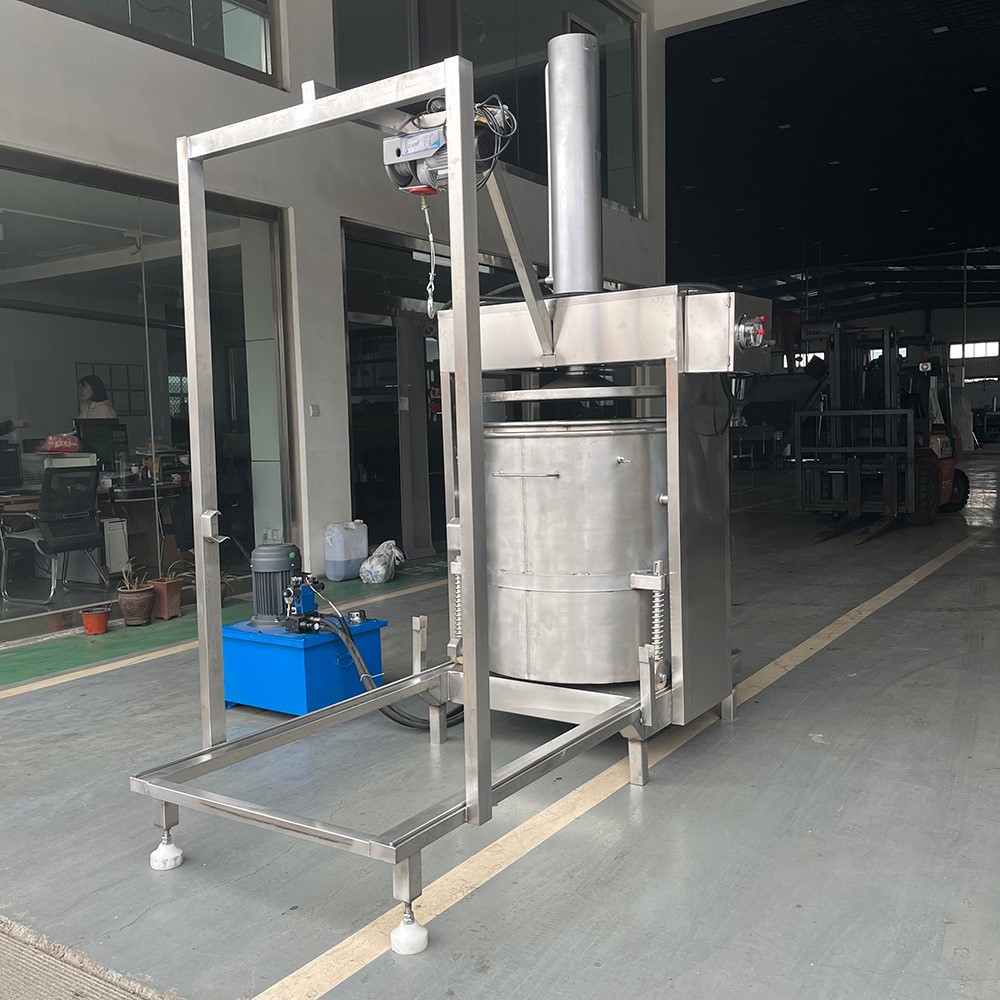

Product picture
Other types of machines
Finished product display
The extraction rate is generally around 65-75%, with fruits and vegetables having the highest extraction rate at 70-75%, depending on the specific material.
FAQ
Q:What are the different unloading methods for the machine?
A:Three---Manual unloading, electric hoist unloading, and electric unloading.
Q:Can the machine be used to juice whole pomegranates?
A:If you want to juice whole pomegranates, you need to choose a larger model. However, pomegranate peels are thick, and the juice extraction rate is not as high as when using pomegranate seeds.
It is recommended to use it in conjunction with a pomegranate peeling and seeding machine.
Q:Does the machine require crushed raw materials?
A:Technicians recommend using smaller raw materials, as this will result in a higher juice extraction rate.
