Commercial Meat Slicer
video
Commercial Meat Slicer

Commercial Meat Slicer

Commercial meat slicer: 1. Blade: German BE brand, enabling high-precision cutting. 2. Touchscreen: Siemens, allowing for cutting thickness adjustment via the touchscreen. 3. Servo Motor: Siemens, enabling high-intensity cutting.
Send Inquiry
Chat Now

Product Introduction

Machine Description



1.This PLC-controlled Commercial meat slicer can precisely cut fresh or frozen meat into slices, and can also be used for cheese slicing.
2. The blades of the Commercial meat slicer are divided into two types: flat blades and serrated blades. The flat blades are mainly used for cutting boneless products, such as meat slices, steaks, bacon slices, cheese slices, etc.; the serrated blades are mainly used for cutting bone-containing raw materials.







machine parameter





Model

TPP-K21

TPP-K25

TPP-K36

Cutting speed

210 RPM

210 RPM

160/220/280/320 RPM (4 speed level)

Best cutting temperature

-4°

-4°

-4°

Slicing thickness

1-40mm(adjustable)

1-40mm(adjustable)

1-40mm(adjustable)

Cutting power

4000W

4000W

4400W

Pushing power

750W

750W

1000W

Total power

4750W

4750W

5400W

Voltage

380V, 50HZ 3PHASES

380V, 50HZ 3PHASES

380V, 50HZ 3PHASES

Feed tank size

68*21*21cm

68*25*21cm

67*36*21cm

Discharge tank size

84*21*22cm

88*25*22cm

78*36*22cm

Dimension

197*97*125cm

200*108*153cm

195*115*150cm

weight

350kg

400kg

720kg

Machine details

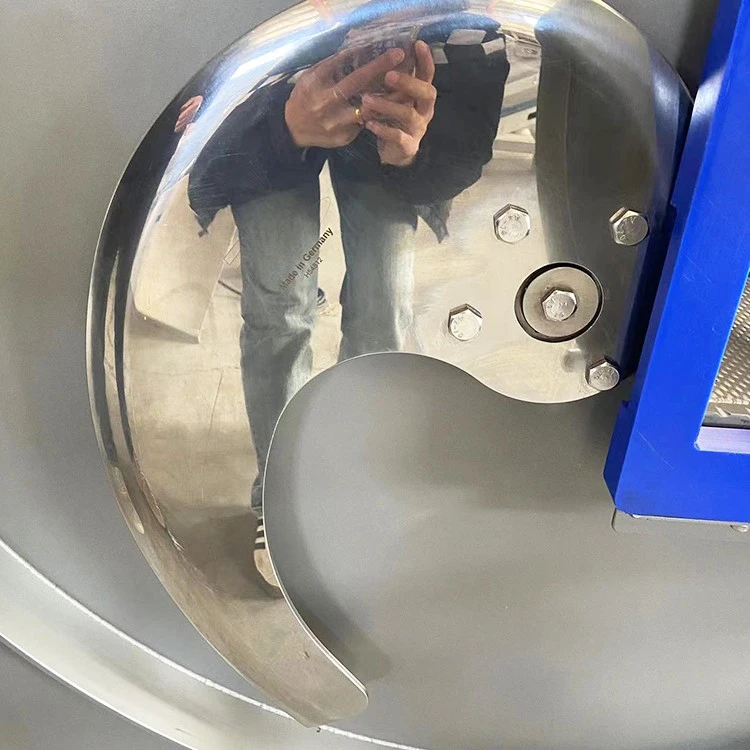

Commercial meat slicer 18

The blade

The commercial meat slicer uses imported German blades, which are sharp and durable, with smooth cutting and uniform cutting thickness.

SIEMENS touch screen

The commercial meat slicer adopts the Siemens PLC system, and the cutting thickness can be set on the screen.

Commercial meat slicer 21

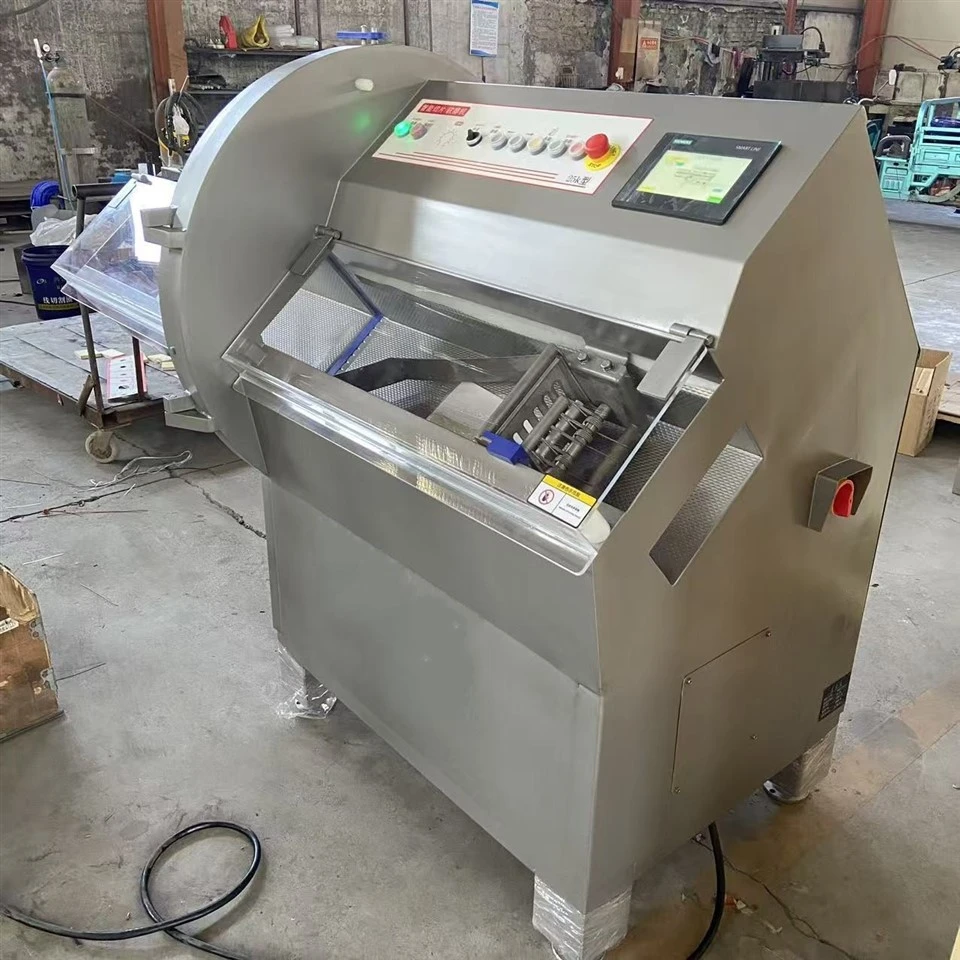

Commercial meat slicer 13

Other details

1.The commercial meat slicer uses German motors, with stable performance, ensuring the cutting accuracy.
2.The bearings use the Japanese NSK series, extending the lifespan and ensuring the durability of the machine.
3.The main shafts of the commercial meat slicer have all been calibrated by the German dynamic balance instrument, ensuring the stability of the equipment and the extremely high durability of the bearings under high-speed operation.

Machine Pictures





Working Steps of the Commercial meat slicer:

1. Set the desired cutting thickness on the machine beforehand.

2. Place the meat or cheese into the machine's cutting channel.

3. The internal rotating blades will slice the meat or cheese.

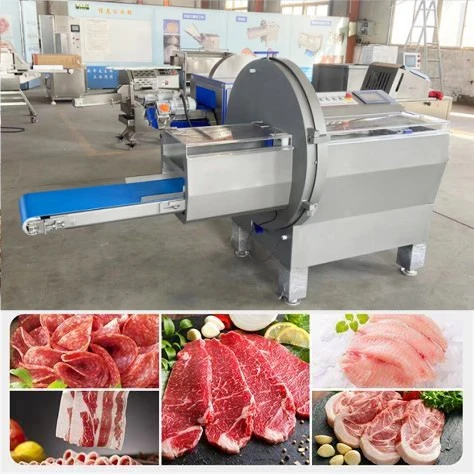

Commercial meat slicer
Commercial meat slicer 10

Commercial meat slicer 7


Application:

  • Meat processing plants
  • Central kitchens & food factories
  • Supermarkets & butcher shops
  • Frozen food production lines
FAQ

Q: How do I set the cutting thickness on the Commercial meat slicer?

A: You can preset your desired cutting thickness on the touchscreen, and the machine will adjust the cutting speed and conveyor belt speed accordingly.
Q:What is the material of the Commercial meat slicer?
A:The entire machine is made of high-quality 304 stainless steel, which meets food safety requirements.
Q: Are there any video tutorials on how to use a touchscreen?
A:Yes, we will provide you with instructional videos and manuals of the Commercial meat slicer.
