Frozen Meat Slicing Machine
video

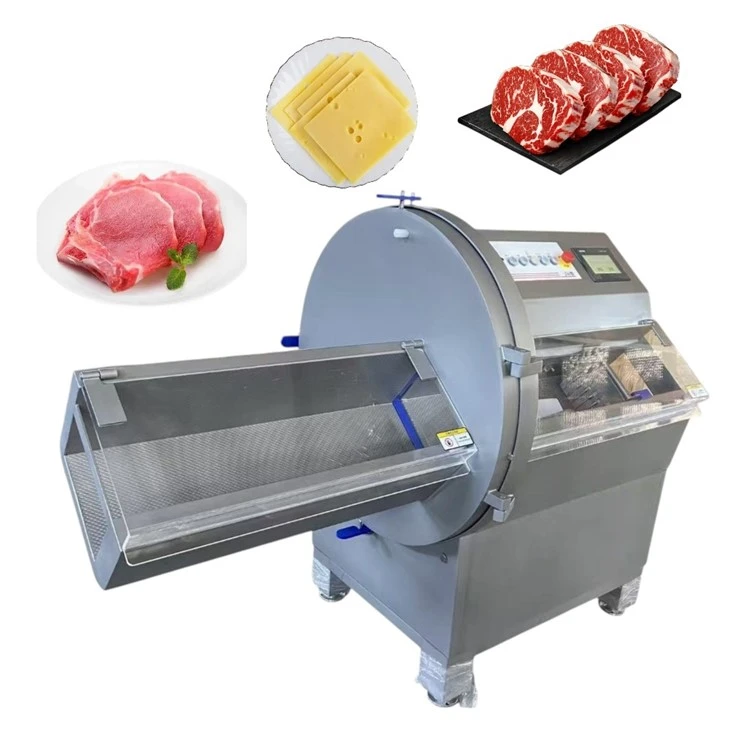

Frozen Meat Slicing Machine

Frozen Meat Slicing Machine

The blades of the Frozen Meat Slicing Machine are divided into two types: flat blades and serrated blades. The flat blades are mainly used for cutting boneless products, such as meat slices, steaks, bacon slices, cheese slices, etc.; the serrated blades are mainly used for cutting bone-containing raw materials.
Send Inquiry
Chat Now

Product Introduction



Production Function





1.The blades of the Frozen Meat Slicing Machine are divided into two types: flat blades and serrated blades.

2.The flat blades are mainly used for cutting boneless products, such as meat slices, steaks, bacon slices, cheese slices, etc.; the serrated blades are mainly used for cutting bone-containing raw materials.

3.The Frozen Meat Slicing Machine uses imported German blades, which are sharp and durable, with smooth cutting and uniform cutting thickness.

4.The Frozen Meat Slicing Machine adopts the Siemens PLC system, and the cutting thickness can be set on the screen.

5.Model S is equipped with a conveyor belt for discharging, which can achieve the function of portioning and precisely realize the thickness, density and distance between each portion.

6.The Frozen Meat Slicing Machine uses German motors, with stable performance, ensuring the cutting accuracy.

7.The bearings use the Japanese NSK series, extending the lifespan and ensuring the durability of the machine.

8.The main shafts of the intelligent slicer have all been calibrated by the German dynamic balance instrument, ensuring the stability of the equipment and the extremely high durability of the bearings under high-speed operation.



Frozen Meat Slicing Machine 3



Model without discharge conveyor





Model

TPP-K21

TPP-K25

TPP-K36

Cutting speed

210RPM

210RPM

160/220/280/320RPM(4 speed level)

Best cutting temperature

-4°

-4°

-4°

Slicing thickness

1-40mm(adjustable)

1-40mm(adjustable)

1-40mm(adjustable)

Cutting power

4000W

4000W

4400W

Pushing power

750W

750W

1000W

Total power

4750W

4750W

5400W

Voltage

380V, 50HZ 3PHASES

380V, 50HZ 3PHASES

380V, 50HZ 3PHASES

Feed tank size

68*21*21cm

68*25*21cm

67*36*21cm

Discharge tank size

84*21*22cm

88*25*22cm

78*36*22cm

Dimension

197*97*125cm

200*108*153cm

195*115*150cm

weight

350kg

400kg

720kg



Frozen Meat Slicing Machine 4



Model without discharge conveyor



Model

TPP-K21S

TPP-K25S

TPP-K36S

Cutting speed

210RPM

210RPM

160/220/280/320RPM(4 speed level)

Best cutting temperature

-4°

-4°

-4°

Slicing thickness

1-40mm(adjustable)

1-40mm(adjustable)

1-40mm(adjustable)

Cutting power

4000W

4000W

4400W

Pushing power

750W

750W

1000W

Conveying power

100W

100W

100W

Total power

4850W

4850W

5500W

Voltage

380V, 50HZ 3PHASES

380V, 50HZ 3PHASES

380V, 50HZ 3PHASES

Feed tank size

68*21*21cm

68*25*21cm

67*36*21cm

Discharge tank size

122*21*22cm

130*25*22cm

1288*36*22cm

Dimension

240*97*125cm

245*108*153cm

270*115*150cm

weight

390kg

450kg

800kg

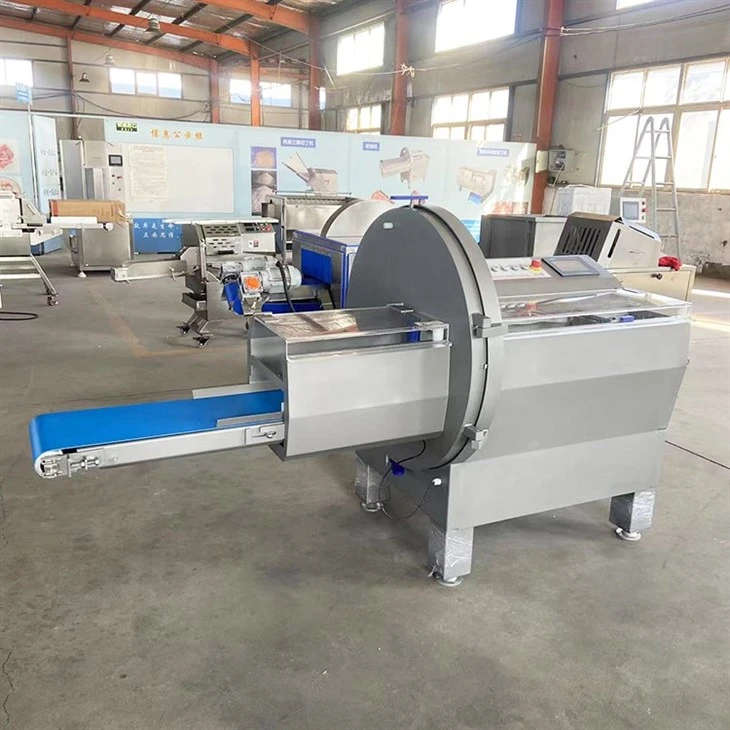

Frozen Meat Slicing Machine 5

Finished images

Frozen Meat Slicing Machineconew1

OHEN1ZYNQZ1B53SS
