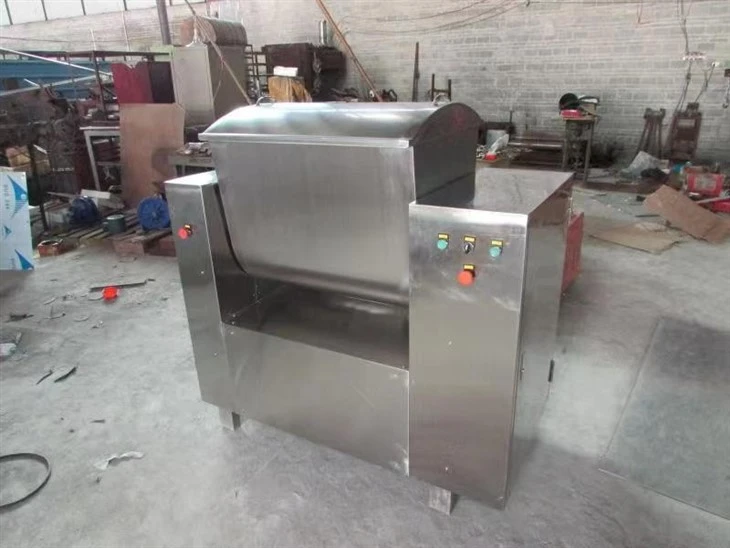

Blender Machine
The machine is the mixing system, the first technology processing equipment in wafer manufacturing. It adopts the separate delivery and automatic circulation system.
Material: the machine frame is made of steel with international standard and the cover adopts imported 304 stainless steel plate with thickness of 1.2mm
Twin mixing barrels made of imported 304 stainless steel plate with thickness of 3mm, Mixture pump (Guangzhou)
Electrical appliance switch (Schneider of Germany), Electrical machine (SEW of Germany)
Main technical parameters：
Mixture quantity per time: 60kg/flour 25kg
Power consumption: main electrical machine 380V 3KW 2900r/min
Mixture pump electrical machine: 380V 0.75kw
Mainframe Oven
1. Unanimous heat colors of wafer block.
2. High rate of certified products with finished product rate of not less than 98%.
3. Small cubage.
Size of template：470mm×325mm
Adjusting range of wafer block thickness: 2.5mm-3.2mm
Demoulding method: automatic demoulding.
Adjusting range of temperature: normal temperature to 180℃
Temperature error：1℃
Cream Spreading Machine
The cream is applied, laid up and laminated automatically and regularly before the wafer block is sent to the conveying belt.
1 Frame： Material with international standard
2The cover adopts imported stainless steel plate
3 Convey belt： Italy
4 Continuously variable transmission： Germany SEW
5 Converter ：Japan's Mitsubishi
6 Process controller：Siemens of Germany
7 Photoelectric switch ：German Schneider
Wafer cutting machine
The machine is equipped with to-and-fro conveying belt and it can cut the wafer block to all sizes.
Materials: the machine frame is made of steel with international standard and the cover adopts imported stainless steel plate
Procedures controller (Siemens of Germany)
Proximity switch German Schneider
Electrical machine (German SEW), Electrical machine power: 380 0.75W N=1400r/min
Decelerating machine type: I=24:1
a. The largest cutting height 55mm
b. Cutting the minimum height
c. Cutting Size : Each cutting machine of the two specifications, the other may choose
d. cutting by Steel wire ,the Line diameter of the steel wire:
0.3mm and 0.5mm can be Optional
Swashing Machine
This machine is a kind of supplementary equipment and utilized for waste recycling.
Material: the machine frame is made of steel with international standard, and adopts imported 304 stainless steel plate with thickness of 3mm
Electrical machine (SEW of Germany)
Electrical machine power: 380V, Y112-4, 4kW, 50Hz
